PS2 Fat HDMI Retro GEM Kit
Successor to N64 Digital, PS1 Digital and DC Digital etc. but now in PS2 form.
The Retro GEM is the ultimate HDMI kit for your retro gaming consoles.
- Digital lag-free HDMI output
- Simple firmware update procedure via WiFi
- Advanced scaling and video filters in Shiny Edition
- Native Direct video in Basic Edition. Perfect for people who already own an external scaler.
This kit can be installed into both Fat and Slim Playstation 2 models. However there are some restrictions. The following motherboards are available.
- GH-015 (SCPH-3000X/3500X)(Coming Soon)
- GH-017 (SCPH-3900X) 1*
- GH-019 (SCPH-3900X) 1*
- GH-022 (SCPH-3900X) 1*
- GH-023 (SCPH-5000X)
- GH-026 (SCPH-5000X)
- GH-032 (SCPH-7000X)
- GH-035 (SCPH-7000X)
- GH-036 (SCPH-7500X)
- GH-037 (SCPH-7500X)
- GH-040 (SCPH-7500X)
- GH-040 (SCPH-7500X)
- GH-041 (SCPH-7700X)
- GH-051 (SCPH-7700X)
- GH-052 (SCPH-7700X)
- GH-061 (SCPH-7900X) 2*
- GH-062 (SCPH-7900X) 2*
1* Requires RePS2 PSU or (SCPH-5000X PSU + SCPH-5000X Metal Shield)
2* Requires extra hdmi output connector that included in the 79K kit

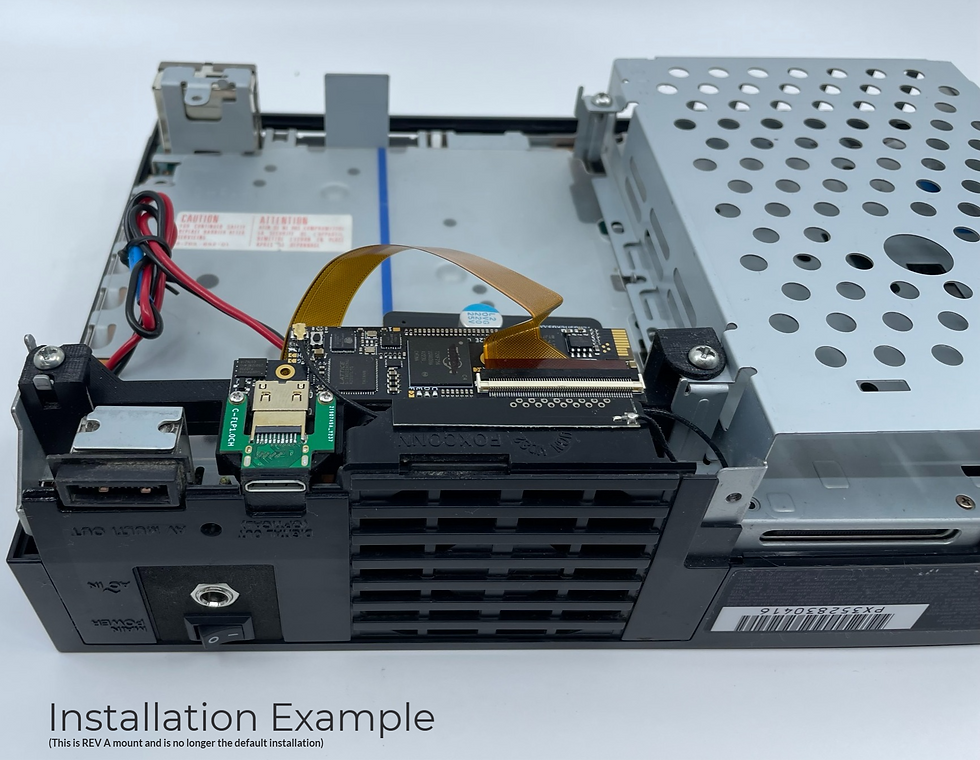

The mini HDMI output setup :
no cut -> sacrifice toslink port (applies to all fat models)
no cut -> sacrifice 56k modem port (only applies to slim models with 56k modem)
cut -> Cut hole in case back (only applies to slim models without 56k modem)
The optional spare flex isn't required and is already included in the console kit. But sometimes mishaps happen during the install and an extra flex will give you a second attempt.
The Retro GEM must be soldered into your gaming console. These modifications are advanced and require a high level of soldering skill. Never soldered before, do not fret! We have recommended installers that can do the modification for you. You can see our full list of installers at the bottom of the details page. This installation is extremely difficult and thus the installation is broken apart between PS2 slim and PS2 Fat.
The basic can be upgraded to the Shiny at any time, even after installing into a console. Upgrades can be purchased here or through the GEM kits on screen display.
PS2 SLIM Installation Instructions
PS2 FAT Installation Instructions
PS2 Open OSD:
- L1 Trigger + R1 Trigger + DPad Right + O
Please see the entire Retro GEM documentation to learn more.
